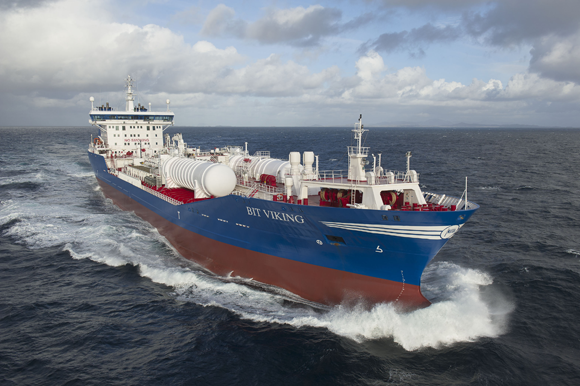

M/T Bit Viking

Product & chemical tanker.
IMO type II Ice Class 1A.
Fully segregated water ballast, double hull, closed loading system.

Swedish flag

Built by Shanghai Edward Shipbuildning, China 2007.
Classed GL* 100A5 E3 ESP IW NAV-OC Chemical Tanker Type-2.
Oil Tanker with Double Hull MC E3 AUT * INERT RP2-50 %.
Ice Class 1 A (Swedish/Finnish).

Particulars
Deadweight
Length over all
Length between p.p
Beam
Depth, moulded
Draught
Service speed
Type of hull

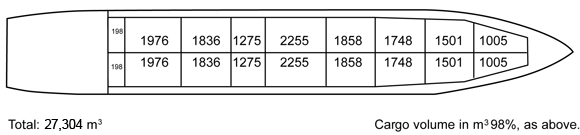

Cargo tanks
2 x 8 wing tanks
Tank coating - epoxy

Cubic capacity
27,304 m³ 98 %

Cargo pumps
Press-Vac centrifugal

Cargo system
Closed loading
Vapour return line
Saab Tank Radar G3

24,783 MT
177,03 m
166,99 m
26,30 m
12,80 m
9,70 m
aprx. 16 knots
double hull









16 x 375 m³/hr
Chemical class
IMO 2

Cargo heating
Hot water

Bow to centre manifold
89,0 m

Cranes
1 crane SWL 10 t

Main engine
LNG duel fuel
2 x WÄRTSILÄ 6L50DF 5,700 kW at 500 rpm

Aux machinery
2 x WÄRTSILÄ 8L20/1,360 kW;WETPAC - NOx reducing system
2 x Shaft generator PTO 1,875 KVA

Bow thruster
Brunvoll 1 x 1,450 kW
